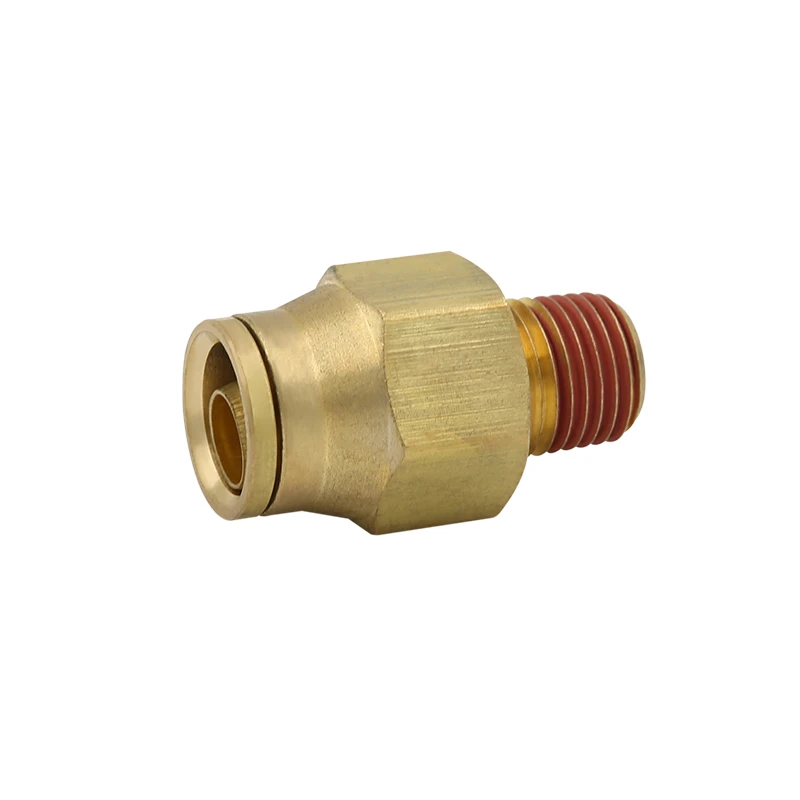

DOT Push In Male Connector

Parts#	Tube O.D* Female NPTF	PARKER	EATON	ALKON	MAF	GATES
2696-2A	1/8*10-32
2696-2B	1/8*1/16
2696-2C	1/8*1/8					G56100-0202
2696-2D	1/8*1/4					G56100-0204
2696-13A	5/32*10/32				685320
2696-13B	5/32*1/16	68PIC-5/32-1*	1868x2.5x1	AQ68-DOT-5/32X1	685321
2696-13C	5/32*1/8	68PTC-5/32-2*	1868x2.5	AQ68-D0T-5/32X2	685322	G56100-2502
2696-13D	5/32*1/4	68PTC-5/32-4*				G56100-2504
2696-3A	3/16*10-32
2696-3B	3/16*1/16	68PTC-3-1*
2696-3C	3/16*1/8	68PTC-3-2*	1868x3		680302
2696-3D	3/16*1/4	68PTC-3-4*
2696-4A	1/4*10-32
2696-4B	1/4*1/16			AQ68-DOT-4X1	680421
2696-4C	1/4*1/8	68PTC-4-2	1868x4	AQ68-DOT-4X2	680402	G56100-0402
2696-4D	1/4*1/4	68PTC-4-4	1868x4x4	AQ68- DOT-4X4	680404	G56100-0404
2696-4E	1/4*3/8	68PTC-4-6	1868x4x6	AQ68-DOT-4X6*	680406	G56100-0406
2696-4F	1/4*1/2	68PTC-4-8
2696-5C	5/16*1/8					G56100-0502
2696-5D	5/16*1/4					G56100-0504
2696-5E	5/16*3/8					G56100-0506
2696-6C	3/8*1/8	68PTC-6-2	1868x6x2	AQ68-D0T-6X2	680602	G56100-0602
2696-6D	3/8*1/4	68PTC-6-4	1868x6	AQ68-DOT-6X4	680604	G56100-0604
2696-6E	3/8*3/8	68PTC-6-6	1868x6x6	A068-DOT-6X6	680606	G56100-0606
2696-6F	3/8*1/2	68PTC-6-8	1868x6x8	AO68-DOT-6X8	680608	G56100-0608
2696-8D	1/2*1/4	68PTC-8-4	1868x8x4	AQ68-DOT-8X4	680804	G56100-0804
2696-8E	1/2*3/8	68PTC-8-6	1868x8	AO68-DOT-8X6	680806	G56100-0806
2696-8F	1/2*1/2	68PTC-8-8	1868x8x8	A068-DOT-8X8	680808	G56100-0808
2696-10E	5/8*3/8	68PTC-10-6	1868x10x6	AQ68-DOT-10X6	681006	G56100-1006
2696-10F	5/8*1/2	68PTC-10-8	1868x10	A068-DOT-10X8	681008	G56100-1008
2696-12F	3/4*1/2	68PTC-11-8	1868x12	A068-DOT-12X8	681208	G56100-1208
2696-12G	3/4*3/4	68PTC-12-12		AQ68-DOT-12X12	681212	G56100-1212



Parts#	Tube O.D* Female NPTF	Tectran	Automann	Fleet Pride	Fairview	Phillips	Tramec Sloan	Norgren
2696-2A	1/8*10-32
2696-2B	1/8*1/16	PL13682X1*		NP68-2-1
2696-2C	1/8*1/8	PL1368-2A*		NP68-2-2		PHI12-93022
2696-2D	1/8*1/4					PHI12-93024
2696-13A	5/32*10/32
2696-13B	5/32*1/16	PL1368251		NP68-25-1	PC1468-5/32X1		S68PMT-532-1
2696-13C	5/32*1/8	PL136825A		NP68-25-2	PC1468-5/32A	PHI12-93052
2696-13D	5/32*1/4	PL136825B				PHI12-93054
2696-3A	3/16*10-32
2696-3B	3/16*1/16		177.13B683X1	NP68-3-1
2696-3C	3/16*1/8	PL1368-3A	177.13B683A	NP68-3-2	PC1468-3A	PHI12-93032		95453003M
2696-3D	3/16*1/4			NP68-3-4	PC1468-3B	PHI12-93034
2696-4A	1/4*10-32
2696-4B	1/4*1/16	PL1368-41						95453001M
2696-4C	1/4*1/8	PL1368-4A	177.13B684A	NP68-4-2	PC1468-4A	PHI12-93042		95453004M
2696-4D	1/4*1/4	PL1368-4B	177.13B684B	NP68-4-4	PC1468-4B	PHI12-93044		95453010M
2696-4E	1/4*3/8	PL1368-4C	177.13B684C	NP68-4-6	PC1468-4C	PHI12-93046	S68PMT-4-6	95453018M
2696-4F	1/4*1/2		177.13B684D
2696-5C	5/16*1/8
2696-5D	5/16*1/4						S68PMT-5-4
2696-5E	5/16*3/8
2696-6C	3/8*1/8	PL1368-6A	177.13B686A	NP68-6-2	PC1468-6A	PHI12-93062	S68PMT-6-2	95453006M
2696-6D	3/8*1/4	PL1368-6B	177.13B686B	NP68-6-4	PC1468-6B	PHI12-93064	S68PMT-6-4	95453012M
2696-6E	3/8*3/8	PL1368-6C	177.13B686C	NP68-6-6	PC1468-6C	PHI12-93066	S68PMT-6-6	95453020M
2696-6F	3/8*1/2	PL1368-6D	177.13B686D	NP68-6-8	PC1468-6D	PHI12-93068	S68PMT-6-8	95453029M
2696-8D	1/2*1/4	PL1368-8B	177.13B688B	NP68-8-4	PC1468-8B	PHI12-93084	S68PMT-8-4	95453013M
2696-8E	1/2*3/8	PL1368-8C	177.13B688C	NP68-8-6	PC1468-8C	PHI12-93086	S68PMT-8-6	95453021M
2696-8F	1/2*1/2	PL1368-8D	177.13B688D	NP68-8-8	PC1468-8D	PHI12-93088	S68PMT-8-8	95453030M
2696-10E	5/8*3/8	PL136810C	177.13B6810C	NP68-10-6	PC1468-10C	PHI12-93106	S68PMT-10-6	95453022M
2696-10F	5/8*1/2	PL136810D	177.13B6810D	NP68-10-8	PC1468-10D	PHI12-93108	S68PMT-10-8	95453031M
2696-12F	3/4*1/2	PL136812D	177.13B6812D	NP68-12-8	PC1468-12D	PHI12-93128	S68PMT-12-8	95453049M
2696-12G	3/4*3/4	PL136812E	177.13B6812E	NP68-12-12	PC1468-12E		S68PMT-12-12	95453055M





The automotive braking system is the core of vehicle safety, and its pipeline connections must meet the following stringent conditions:

High pressure tolerance, the working pressure of brake fluid can reach 1000-2000 psi, and the transient pressure is even higher during emergency braking.

Corrosion resistance, brake fluid has hygroscopicity and chemical corrosiveness, and must be compatible with materials.

Anti vibration, continuous vibration during vehicle operation may cause loose or leaking joints.

Fast installation and maintenance, high production line efficiency and convenient maintenance requirements.

DOT certification: Must comply with US Department of Transportation standards (such as FMVSS 106) to ensure safety compliance.

The DOT push in series Male Connector is mainly used in the braking system for the following key nodes:

Materials and processes:

Forged brass body: tensile strength ≥ 400 MPa, pressure resistance 3000 psi, far exceeding the requirements of the braking system.

FKM sealing ring: resistant to brake fluid corrosion, suitable for temperatures ranging from -40°C to 150°C.

Stainless steel spring lock buckle: designed to resist fatigue, with no failure after more than 100000 cycles of insertion and extraction in vibration environments.

Structural innovation:

Double sealing mechanism: O-ring static sealing+hook and loop mechanical locking, double leak proof.

Anti misoperation design: Some models require rotating unlocking to avoid accidental disengagement.

Hot Tags: dot push in male connector, China dot push in male connector manufacturers, suppliers, factory, Forged Street Elbow 45 , Coupling Short Shank With Hex, Reducer Branch Tee, ABC Push In Steckverbinder, High pressure male swivel adapter, DOT truck brake joiners
